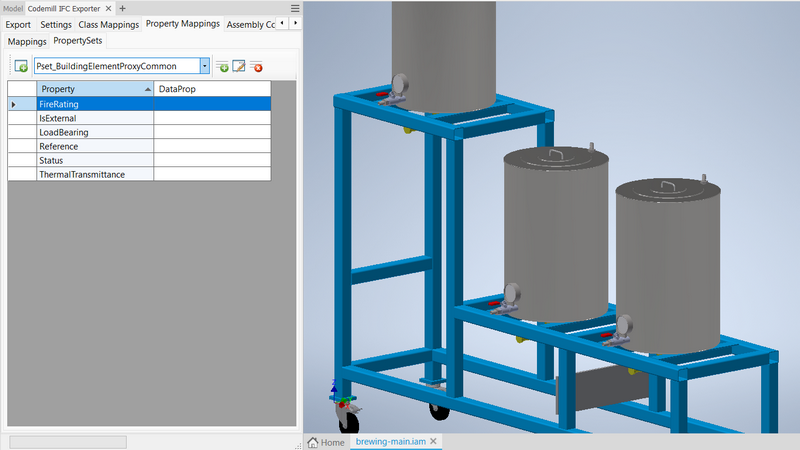

Inventor IFC Exporter has predefined PropertySets that are recommended by BuildingSMART. You can use them or create custom ones when setting up property mappings as desribed in Property Mappings page,





Add new Properties to PropertySets

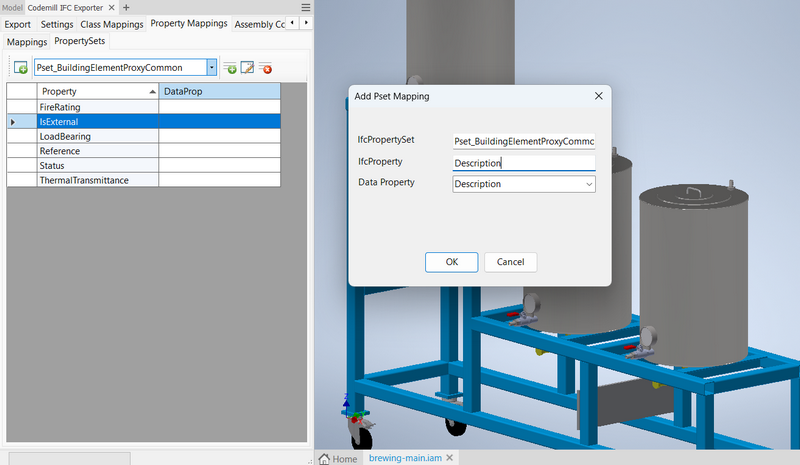

You can add more properties to each PropertySet or create new PropertySets (and properties) with Add IfcProperty button.





 By default the plugin will add name of the current IfcPropertySet in the IfcPropertySet textbox, but you can change it if you want to create a new PropertySet. Then you can enter name of new property into IfcProperty textbox. You can also map corresponding Plant3D properties with Data Property comboboxes now or later.



Edit PropertySet Properties

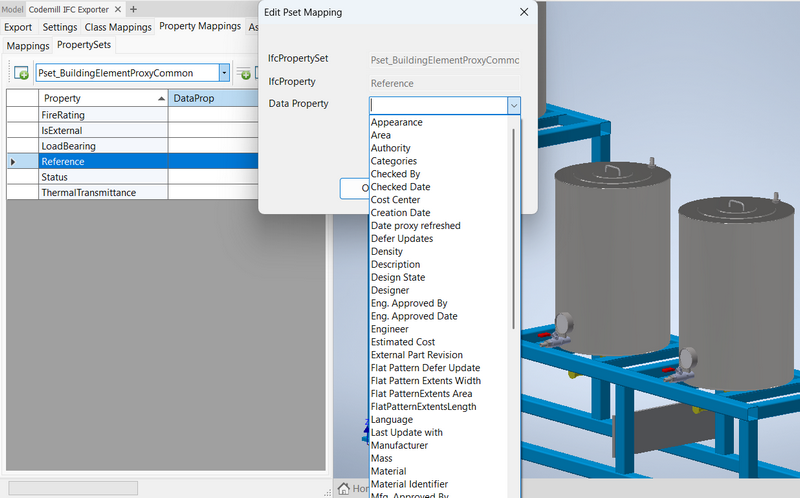

You can also change property mappings of each PropertySets with Edit IfcProperty button.






Remove Properties from PropertySets

Select row that you want to remove in the DataGridView and press Remove IfcProperty button.
